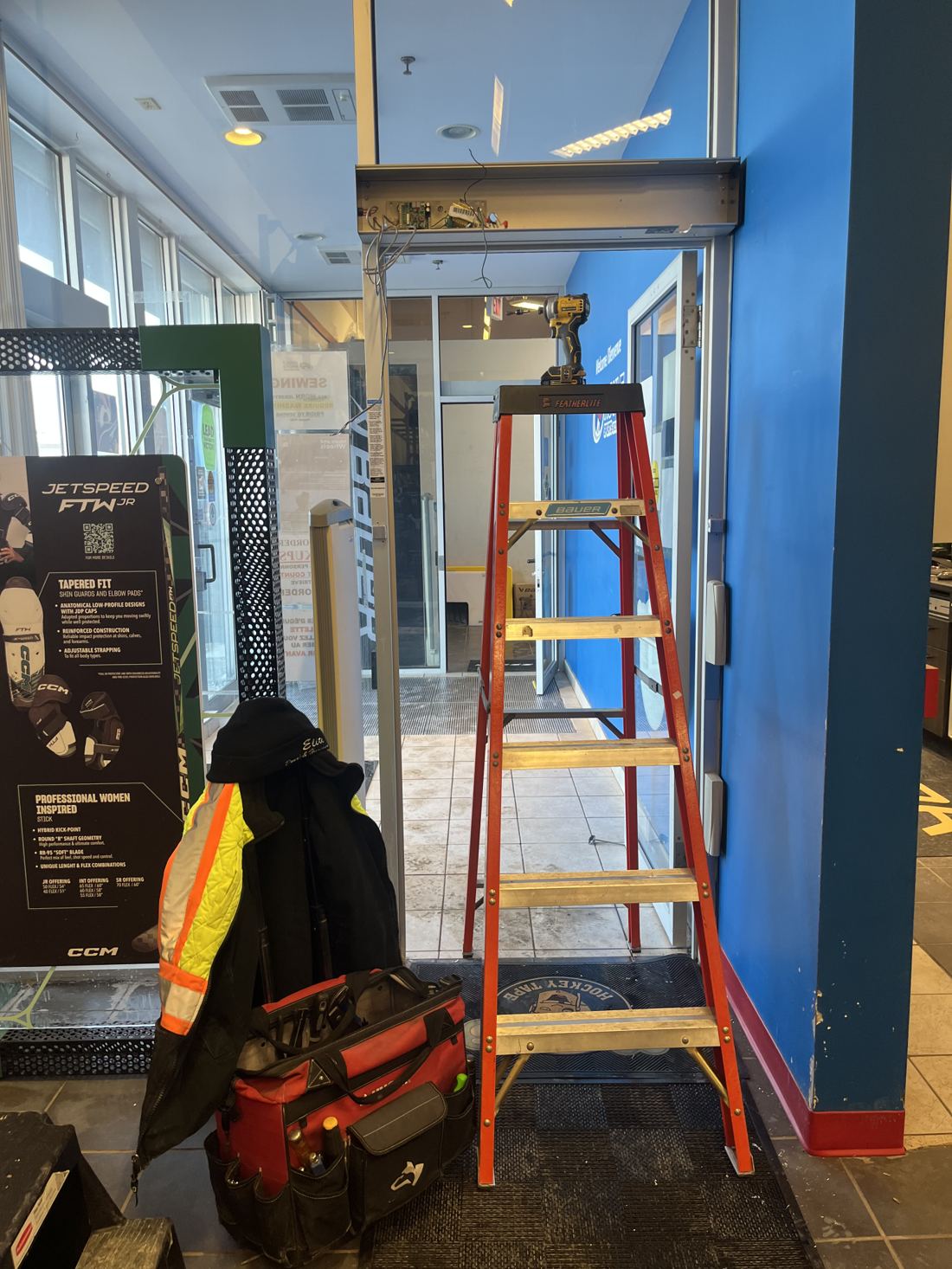

This commercial entrance project shows the operator header opened during installation and wiring. A powered entrance depends on more than the motor: the controller, arm, activation wiring, sensors and safety settings all need to work together.
A door operator installation is a mechanical, electrical and safety job at the same time. The unit mounted above the door has to move the leaf smoothly, but it also has to know when to open, how long to hold, when to close and when to stop because someone is still in the opening. In this Ottawa commercial entrance, the operator header was opened so the drive, controller and wiring could be connected and commissioned properly rather than hidden behind the cover before testing.
Commercial operators are often installed in retail stores, clinics, offices, public buildings and multi-tenant properties where accessibility and traffic flow matter. A good installation starts with the door itself. We confirm that the leaf swings or slides freely, that the frame is secure, that the hinges or pivots are capable of carrying the extra operating force, and that the closer or operator arm has enough geometry to work without binding. Installing a powered unit on a door that is already dragging only burns out the operator and creates a repeat service call.
Once the opening is ready, the operator is mounted level and secure. Wiring is routed for power, activation, safety and any access control integration. Depending on the entrance, activation may come from push plates, wave switches, motion sensors, a card reader release, a buzzer, or a combination of devices. Safety devices are just as important as activation. The door must not close hard on a person, and it must not ignore someone moving slowly through the opening with a walker, wheelchair, stroller or delivery cart.
This project matches our automatic door repair and installation Ottawa service. We install and service automatic swing operators, sliding entrance operators, control boards, arms, sensors, safety beams and activation devices. If the goal is a low-energy accessible swing door rather than a full automatic entrance, our pedestrian operator installation page explains that type of system in more detail.
Commissioning is where the installation becomes safe and usable. We cycle the door repeatedly, adjust the opening speed, closing speed, hold-open time and force, and confirm that the activation devices trigger consistently from the expected approach path. We also check that the door can be used manually when required and that any access control release does not interfere with safe egress. If the entrance is part of a controlled system, we coordinate the electric strike, maglock or reader with the operator so the door releases before the operator tries to move it.
Ottawa weather adds another layer. Exterior doors see salt, slush, wind load and freeze-thaw movement. A door that works nicely in the shop can behave differently on a windy February morning. That is why the door, threshold, seals and alignment matter before the operator is adjusted. A powered entrance should not have to fight the building. It should move a balanced, properly aligned door through a predictable cycle.
The finished result is an entrance that opens reliably, holds long enough for real users and closes securely after each cycle. For business owners and property managers, that means fewer complaints, better accessibility and less risk of a door being left disabled because the system was installed without proper setup.
We also look at how staff use the entrance after hours. Many Ottawa businesses need an automatic entrance to lock securely at closing time, switch to manual operation during service, and return to automatic operation the next morning without confusion. During commissioning, we confirm the operating modes, explain the basic reset and safety-check routine, and identify the signs that service is needed before the operator fails completely. That helps property managers avoid a disabled accessible entrance during peak customer traffic.
