An automatic door is really a piece of motorized machinery. Inside the header above the opening sits an operator: a motor, a gearbox or belt drive, a controller circuit board, and a set of sensors that decide when the leaf moves and how fast. That machinery runs thousands of cycles a week at a busy Ottawa grocery store, pharmacy, medical clinic, or office lobby, and like any machine running that hard, it wears, drifts out of adjustment, and eventually needs attention.

Which page to call: for a door that already exists and will not open, close or activate correctly, use automatic door repair Ottawa. For a new header, retrofit or upgrade, use automatic door installation Ottawa. For push-button low-energy swing leaves, use pedestrian operator repair and installation. This page is the systems overview — how operators, sensors and safety devices fit together — not the dispatch page for a stuck entrance.

At Fix My Door Now Ottawa, we work on automatic pedestrian door systems throughout Ottawa and the Valley — sliding entrances, swing operators, and the sensors and activation devices around them. Commercial door operators on plaza, clinic and office entries are the same systems: the main differences are traffic volume and exposure to winter weather. Diagnosing whether a fault is a dirty sensor lens, a misaligned safety beam, or a worn operator is the heart of good automatic entrance work.

Automatic sliding door systems

Automatic sliding doors are the most common system at busy Ottawa retail and institutional entrances, and they’re what we’re called to most often. A sliding operator moves one or two glass leaves along a track using a belt driven by a motor in the header, guided by carriage rollers and an anti-riser. When a sliding door starts to hesitate, judder, or grind as it travels, the cause is usually mechanical: a worn or stretched drive belt that is slipping on the pulley, carriage rollers that have flat-spotted or seized, or debris and grit packed into the bottom guide track from a winter of slush and sand tracked in on people's boots. We strip the header, inspect the drive train, replace worn belts and rollers, clean and realign the track, and re-tension the system so the leaves glide smoothly and stop where they should.

Other sliding-door faults live in the electronics. A door that opens partway and stutters, opens at the wrong speed, or refuses to break out in an emergency points to the controller, the motor encoder, or the breakout switches in the leaves. We read the operator's fault codes, test the motor and controller, and either recalibrate the system or replace the failed board. We also handle the breakout function — the safety feature that lets sliding leaves swing open manually in an emergency — and make sure it both releases when it should and re-seats correctly afterward.

Automatic swing door operators

Automatic swing doors use a different mechanism: an operator mounted on the header drives a push or pull arm that swings a conventional door leaf open and eases it closed. These are common on vestibules, secondary entrances, and interior accessible doors throughout Ottawa offices, clinics, and public buildings. Swing operators come in low-energy and full-energy configurations, and the distinction matters — a low-energy operator opens slowly enough that it does not require the guide rails and presence sensors a full-energy operator needs, which makes it the right choice for most accessible entrances. We repair both: failed motors, stripped gear trains, arms that have come loose or bent, and operators that have lost their open or close adjustment and now either slam or stall partway.

A swing operator failure often shows up as a door that no longer holds open long enough, opens too aggressively, or has reverted to acting like a manual door because the motor has failed. We diagnose whether the fault is mechanical or electronic, rebuild or replace the operator's internal components, and re-set the opening force, speed, and hold-open time to the correct values for a safe, comfortable cycle.

Sensors, activation, and safety devices

More automatic door problems are caused by sensors than by the operator itself. Every powered pedestrian door relies on two kinds of detection working together: activation sensors that tell the door someone is approaching and to open, and safety sensors that hold the door open while a person is still in the path of the moving leaf. When an automatic door opens and then refuses to close, the safety system is almost always the culprit — an overhead presence sensor whose lens is fogged or dirty, a threshold photo-beam that has drifted out of alignment, or low winter sun streaming across the opening and tricking an infrared sensor into seeing an obstruction. We clean, realign, recalibrate, and where necessary replace motion sensors, presence sensors, and safety beams so the door reads the opening accurately.

Activation devices are equally varied: overhead microwave motion sensors, floor mats, push plates, and touchless wave switches. A door that opens for no reason, opens too late, or opens for passing foot traffic that was never meant to come in usually needs its activation sensor's detection field re-shaped or its sensitivity re-set. Getting the activation and safety zones tuned to the actual geometry of the opening — so the door is responsive without being twitchy, and safe without being stuck — is precise work, and it is where experience separates a lasting repair from a temporary one.

New automatic door installation

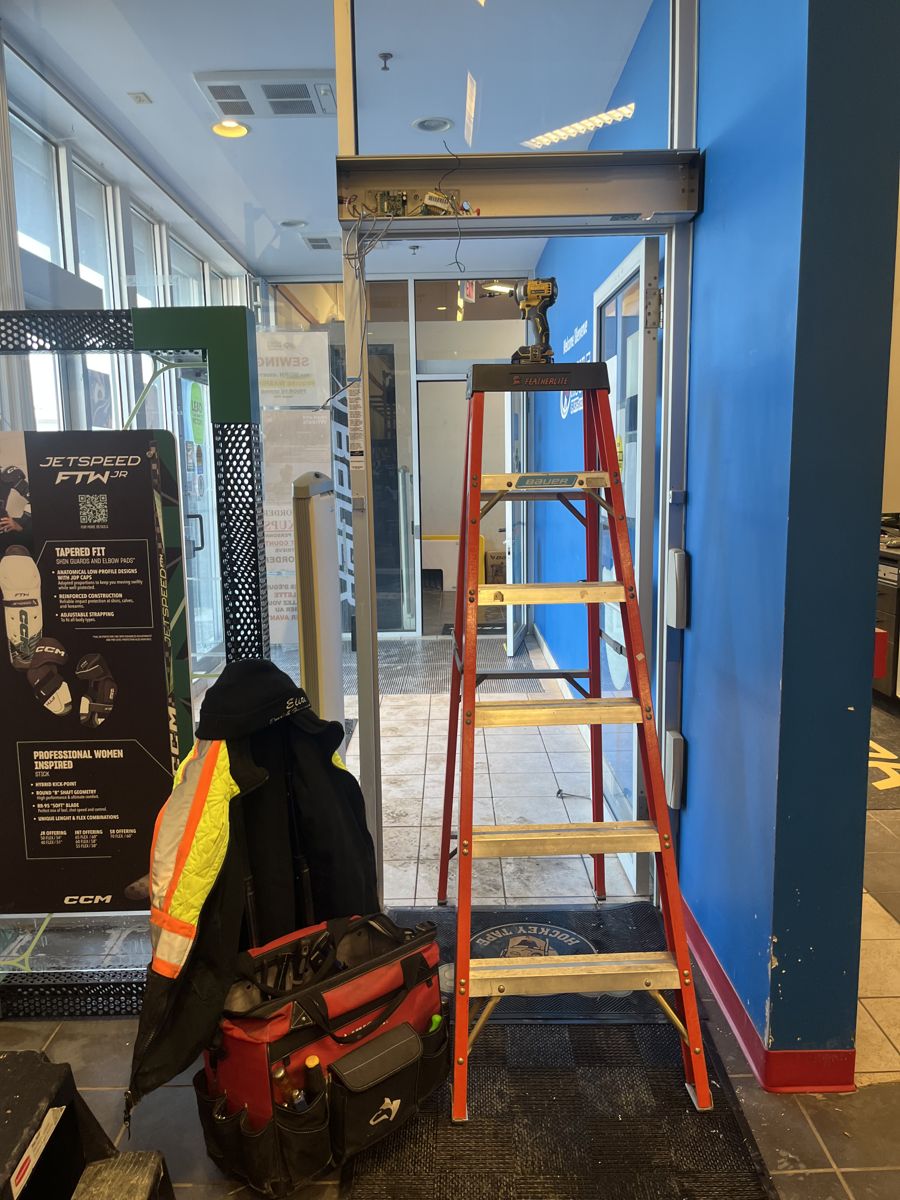

When you are adding an accessible entrance, replacing a tired old operator, or building out a new Ottawa retail or clinical space, we supply and install complete automatic door systems. Installation starts with the opening: we measure the rough opening, assess the wall and header structure that will carry the operator's weight, confirm the power supply, and recommend whether an automatic sliding or automatic swing system suits your traffic volume, available floor space, and accessibility goals. A high-volume retail entrance typically wants a sliding system; a narrower vestibule or an accessible washroom corridor is usually best served by a low-energy swing operator.

From there we install the operator, mount and aim the activation and safety sensors, set up the activation switches or push plates, and commission the entire system — running it through its full cycle repeatedly to confirm the opening speed, closing speed, hold-open time, and sensor coverage all fall within the powered-door safety standard. We finish by walking you through daily operation and the simple safety check your staff should perform each morning before the public arrives.

Accessibility and code compliance

An automatic entrance is one of the most effective ways to provide a barrier-free door, and in many Ottawa buildings it is what makes the difference between an entrance someone using a wheelchair, a walker, or a stroller can use independently and one they cannot. We set operators to the applicable ANSI/BHMA performance standard — A156.10 for full-energy power-operated doors or A156.19 for low-energy operators — covering opening and closing speeds, hold-open time, forces, and safety detection. Those settings keep the entrance usable and safe, but they do not by themselves certify that every AODA or Ontario Building Code accessibility requirement for the whole opening has been met. Dedicated handicap operator repair for push-button accessible swing operators is covered on the accessibility operators page.

Maintenance and annual safety inspection

A powered pedestrian door should be checked daily by the building operator using a simple walk-through routine, and inspected at least once a year by a qualified technician. The annual inspection is not a formality — it verifies that the operating forces, speeds, hold-open timing, and the activation and safety sensors are all still within specification after a year of cycling, weather, and wear. Sensors drift, belts stretch, and adjustments creep, and a door that was perfectly safe last spring can develop a closing force or a sensor blind spot that needs correcting. We provide scheduled maintenance and annual inspection programs for Ottawa automatic entrances, with documentation you can keep on file for liability and insurance purposes. Property managers and facility teams who run several automatic doors find a planned-maintenance agreement far cheaper than waiting for each entrance to fail at its busiest hour.

Why Ottawa businesses choose us for automatic doors

• System-level diagnosis — we isolate whether the fault is the operator, the sensors, or the activation devices before we touch a single part.
• Sliding and swing expertise — high-traffic sliding entrances and low-energy accessible swing operators alike.
• Safety-standard setup — speeds, forces, and hold-open times configured to the power-operated door standard every time.
• Accessibility focus — entrances set up to support barrier-free access with operators adjusted to the right performance limits.
• Fast response — a stuck automatic door is a security and accessibility problem, and we treat it as one.
• Flat-rate quotes — agreed before we start the repair.
• Ottawa Valley coverage — service across Ottawa, Kanata, Barrhaven, Orléans, and throughout the Valley.
