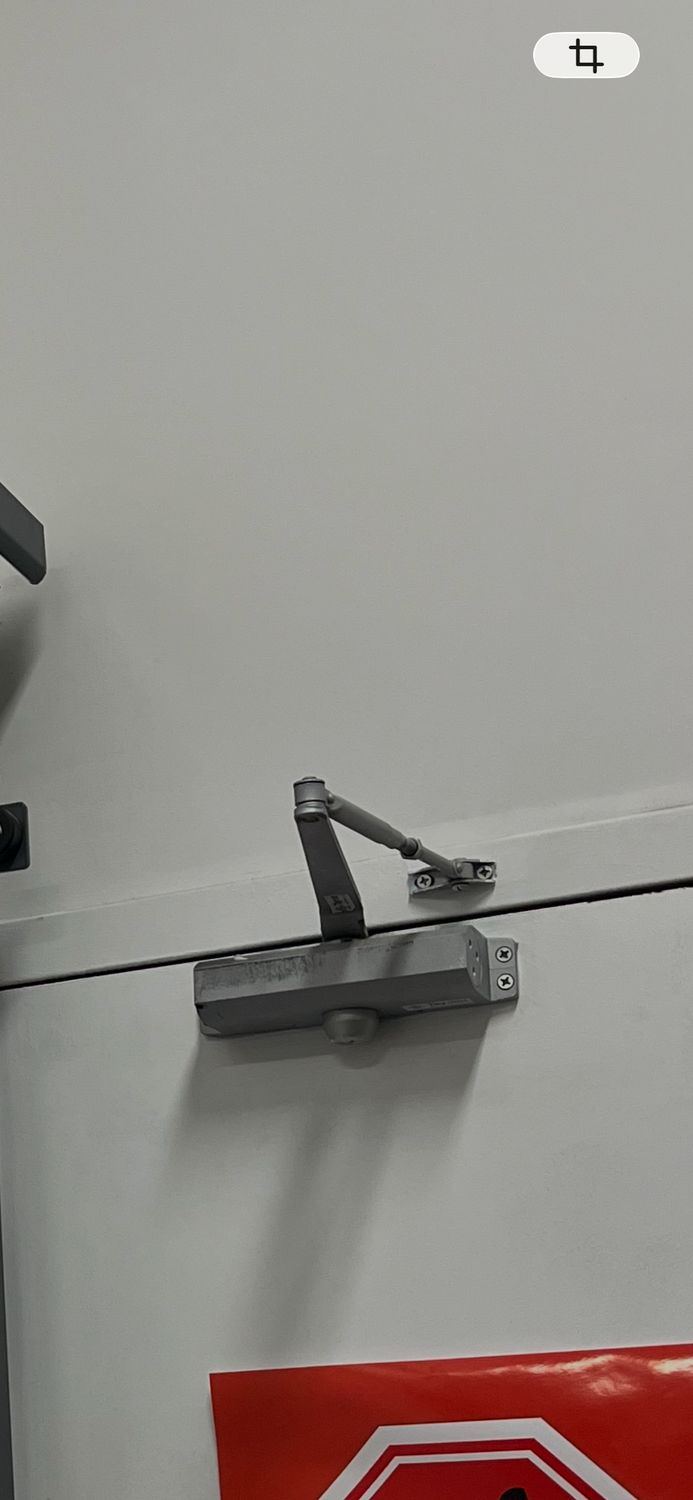

A surface-mounted hydraulic closer installed and tuned on an Ottawa fire door — set so it closes at a safe speed and latches positively every time.
A door closer is one of the hardest-working pieces of hardware on any commercial or fire-rated door. Every time the door opens, the closer stores energy and then releases it in a controlled way to bring the leaf back and seat the latch — hundreds of times a day, year after year. This Ottawa project shows a surface-mounted hydraulic closer installed on a fire-rated door, set up so the door closes fully, latches every time and does not slam.
On a fire door, the closer is not a convenience item — it is a life-safety device. A fire-rated door only protects an exit or a stairwell if it is positively latched when a fire starts. If the closer is weak, leaking oil or adjusted too softly, the door can drift to a stop just short of the frame and leave the latch sitting outside the keeper. To anyone walking past it looks closed, but it is not secured, and in a fire it will not hold back smoke or flame. That is why closer installation and adjustment has to be done correctly, not just bolted on and left.
For this installation we matched the closer size to the door. Closers are rated by power size, and the right size depends on the width and weight of the door, the location, and whether the opening needs to meet accessibility force limits. A closer that is too small will not overcome weatherstripping, air pressure or a slight bind and the door will hang open; one that is too strong makes the door hard to pull and can be a barrier for anyone with limited mobility. We mounted the body and arm so the geometry is correct, then dialled in the adjustments.
Modern closers have separate valves for the main closing speed, the final latch speed and often a backcheck that cushions the door if it is thrown open hard. We set the sweep so the door travels at a steady, controlled pace, then tuned the latch speed so it pulls the door firmly into the frame and seats the latch without slamming. Backcheck was adjusted to protect the closer, the hinges and the wall from a door flung open in a gust or a rush. Getting these three settings balanced is the difference between a door that feels solid and one that bangs or stalls.
This project ties directly to our main door closer repair and installation Ottawa service. We install and service surface-mounted closers, concealed overhead closers, parallel-arm and regular-arm mounts, and heavy-duty closers for high-traffic entrances. We also replace failed closers — units that leak hydraulic fluid, no longer hold their adjustment, or have been damaged by being forced — and we retrofit closers onto doors that never had one but now need controlled closing for security or code reasons.
Because a closer never works alone, we check the rest of the opening at the same time. A door that has dropped on its hinges, a frame that is out of square, a misaligned strike or worn weatherstripping will all fight the closer and stop the door latching. We correct those issues so the closer is not blamed for a problem it cannot fix. On fire and exit doors we also confirm the hardware works with any access control or electric locking, since a powered door has to release before the closer brings it home.
The result here is a fire door that closes at a safe, steady speed and latches positively every cycle — quiet in everyday use and dependable when it matters most. For Ottawa property managers, retailers, offices and institutions, that reliability is exactly what a closer is supposed to deliver, and it is the standard we set on every door closer installation across the city and the Ottawa Valley.
Call for closer supply, installation and adjustment on commercial, fire and high-traffic doors across Ottawa and the Valley.
