This sliding door runs from the kitchen of a Westboro home out to the back deck — the door used for every trip to the barbecue. In the before video, the technician pulls on the handle and the panel hardly travels. In the after video, the same panel rolls the full width of the opening and back under one hand.
Confirmed work on this visit: the operable panel came out, the rollers in its bottom rail were replaced, the panel went back into the existing frame, and the roller height was set so the door cleared the sill. The frame, glass and fixed panel all stayed.
The Before Video: A Panel That Wouldn’t Roll
On this door the resistance was obvious on camera before anything was taken apart. When a sliding patio door is hard to open — a hard tug to start, or travel in jerks — the cause is usually under the panel rather than in the handle.
Why Rollers Were the Fix Here
The operable panel rides on two roller assemblies in the ends of its bottom rail. Those wheels run on a raised rail in the sill. When they wear or seize, the panel settles, the bottom rail starts dragging, and yanking the handle becomes the only way to move it. Most patio doors also have adjustment screws that raise or lower the rollers; that helps when the wheels are sound but the panel has settled. When the wheels themselves are worn, raising them only lifts a bad wheel — so on this job the rollers were replaced rather than adjusted further.
Taking the Panel Out and Fitting New Rollers

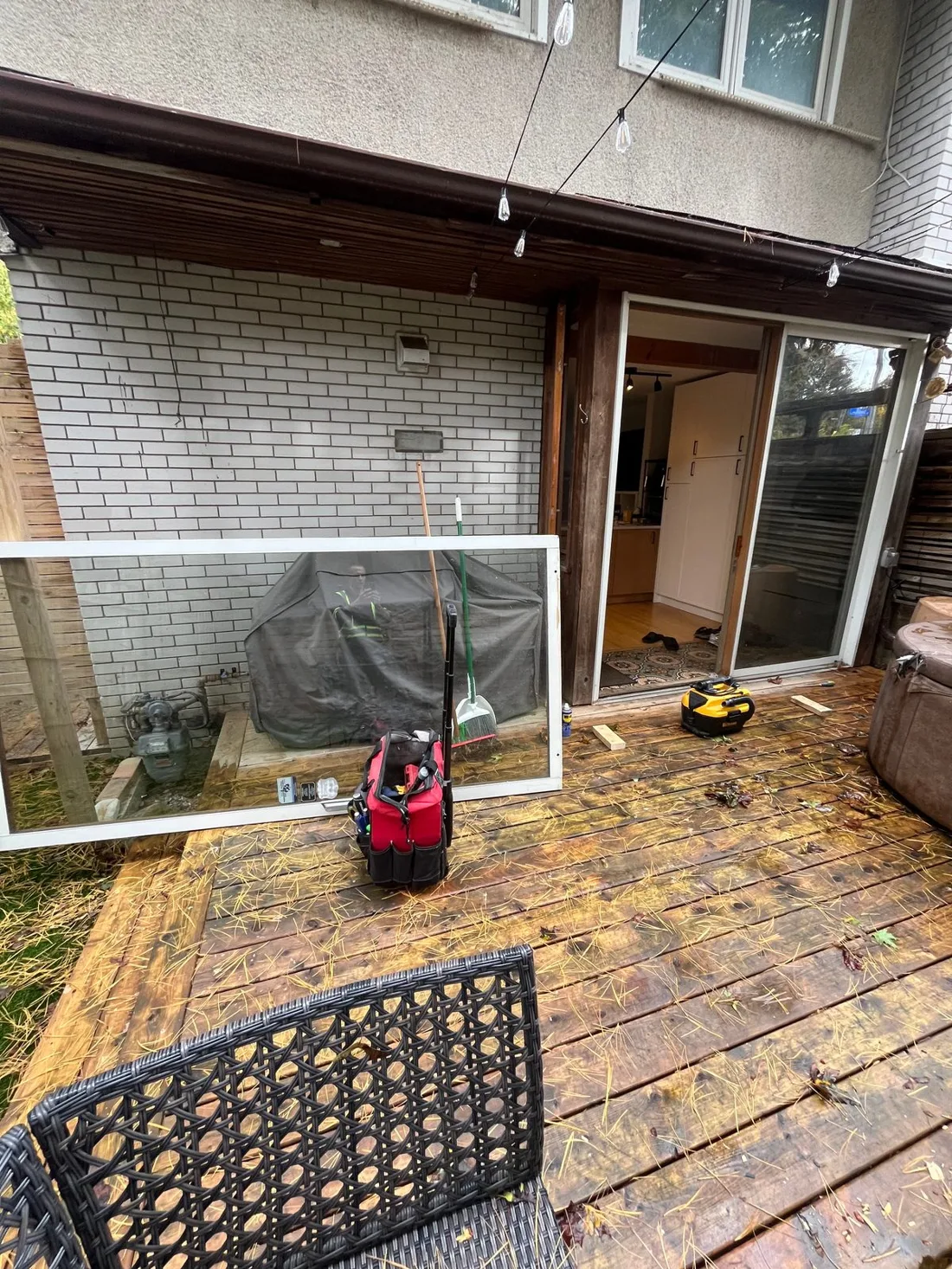

On most sliders the rollers are lowered first, then the panel is lifted into the head track and the bottom swung out of the frame. A full-size glass panel is heavy, so it is set down where it can be worked on safely. In the photo the opening is empty and the panel is standing on the deck.
With the panel out, the worn roller assemblies come out of the ends of the bottom rail and the new ones go in. The panel goes back into the frame, and the rollers are adjusted so it rides level, clears the sill, and meets the jamb evenly when it closes. No roller brand or part number is claimed here — the replacements were matched to this door’s rail and housing.
The After Video: Rolling Again
Same door, same handle. The panel now runs the full width of the opening and back without being forced. Correct roller height keeps the bottom rail off the sill and stops the wear that comes from dragging.
Roller Replacement or a New Patio Door?
A new patio door is a big job and a big bill. Rollers are usually the right repair when:
- the sealed glass is clear, with no fogging between the panes
- the frame is square and solid, with no rot in the surrounding wood
- the sill rail is intact, or only worn in a way that can be cleaned or capped
- the weatherstripping and lock are in fair shape or can be serviced on the same visit
Replacement is worth discussing when the glass units have failed, the frame is warped or rotted, or several of those problems show up at once. Patio door repair vs. replacement is the decision point when glass, frame and sill are still sound.
How This Job Compares With Our Other Roller Projects

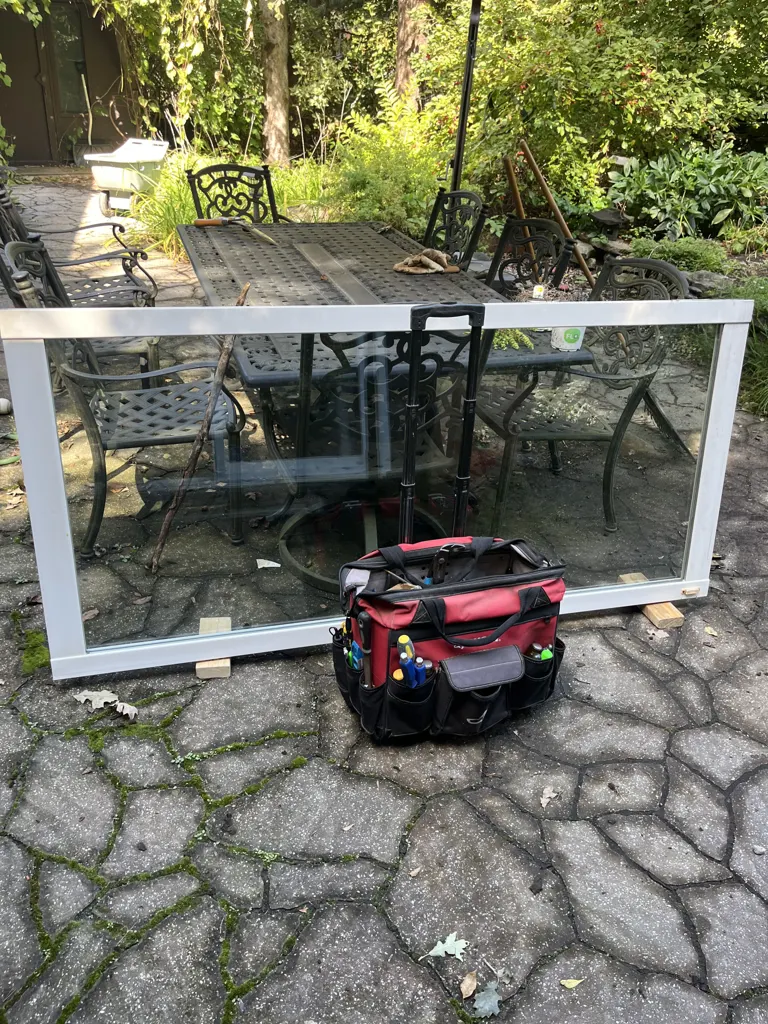

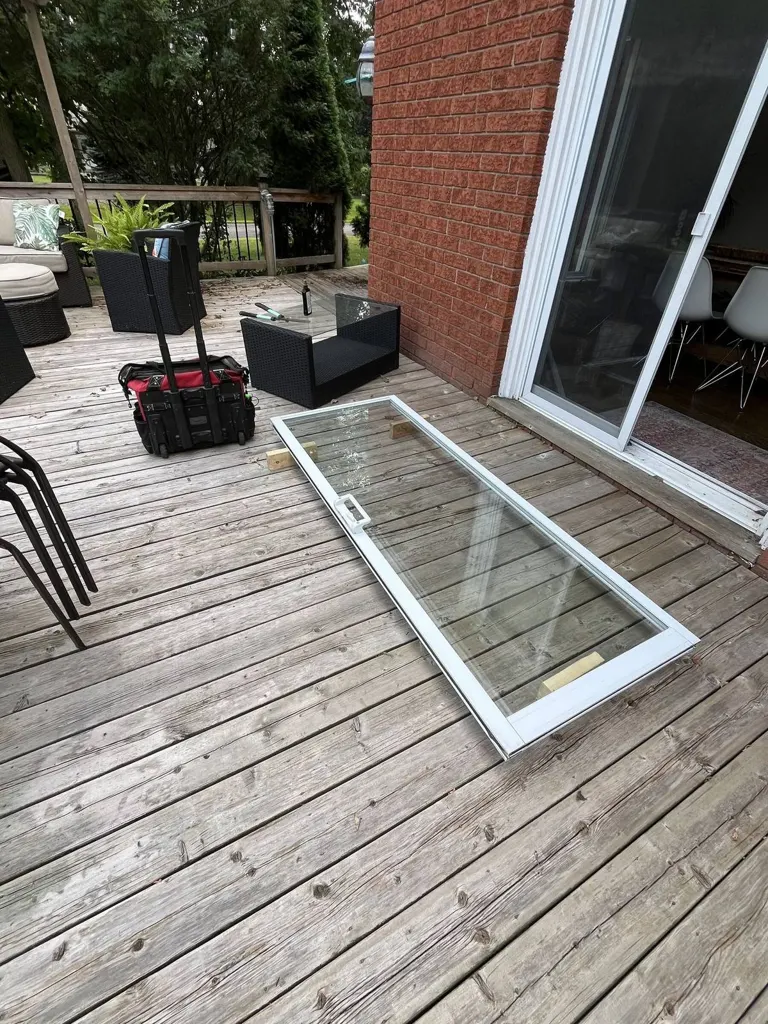

Worn rollers show up differently from door to door. On a recent patio door roller replacement in Gatineau, the track was packed with debris and cleaning it was a big part of the fix. A Stittsville roller replacement is a short before-and-after of a door that had become hard to open and close. This Westboro job is the clearest example we have on video of how little a panel will move on failed rollers, and how much difference new ones make.
Patio Door Repair in Westboro
Westboro is on our regular west-end route, along with Hintonburg, Wellington West and the streets off Richmond Road. The neighbourhood mixes older houses with newer infill, and a lot of homes have a sliding door out to a back deck or patio that gets heavy use from spring to fall. Loose hinges, frame repairs and lock work are the same kinds of door repair in Westboro we handle on that west-end route.
Patio Door Hard to Slide in Westboro?
Send us a short video of the door opening and closing and we’ll tell you whether it looks like rollers, the track or something else.
Call or
request a free quote.
Patio Door Roller Questions
Can I fix a hard-sliding patio door by adjusting the roller screws myself?
Sometimes. If the rollers are in good shape and the panel has only settled, raising it a little can help. If the door still drags or the wheels feel rough, the rollers are worn and adjusting them further won’t fix it. Why a sliding patio door gets hard to open covers what to check first.
How do you tell whether the problem is the rollers or the track?
We look at both. Debris in the sill, a bent or flattened rail, and worn rollers all cause drag. Once the panel is out, the rollers can be spun by hand and the rail checked along its length, which usually makes the cause obvious.
Will new rollers change how my patio door locks?
They can. Raising the panel back to its proper height changes where the latch meets the keeper. That is why the latch should be checked after any roller work, and adjusted if it no longer catches cleanly. If the lock itself is worn, patio door lock repair is the follow-up.
What if the original rollers for my door aren’t made anymore?
That is common with older doors. In many cases a compatible replacement roller can be fitted to the existing housing or rail. If nothing suitable fits, we’ll tell you before any work starts.
Do you repair patio doors in Westboro?
Yes. Westboro is part of our regular west-end service area. Call (613) 265-3667 to book a visit.
