On this Blackburn Hamlet home, forced entry split the latch-side jamb along its length, pushed the interior casing off the wall, and left the framing behind the jamb open to the room. The door was still hanging, but the deadbolt and latch no longer had solid wood to anchor into.
What follows is the damage as it looked when we arrived, the strike-side jamb repair we completed, and why the job was finished with a full-length steel reinforcement plate rather than a pair of short factory strikes.

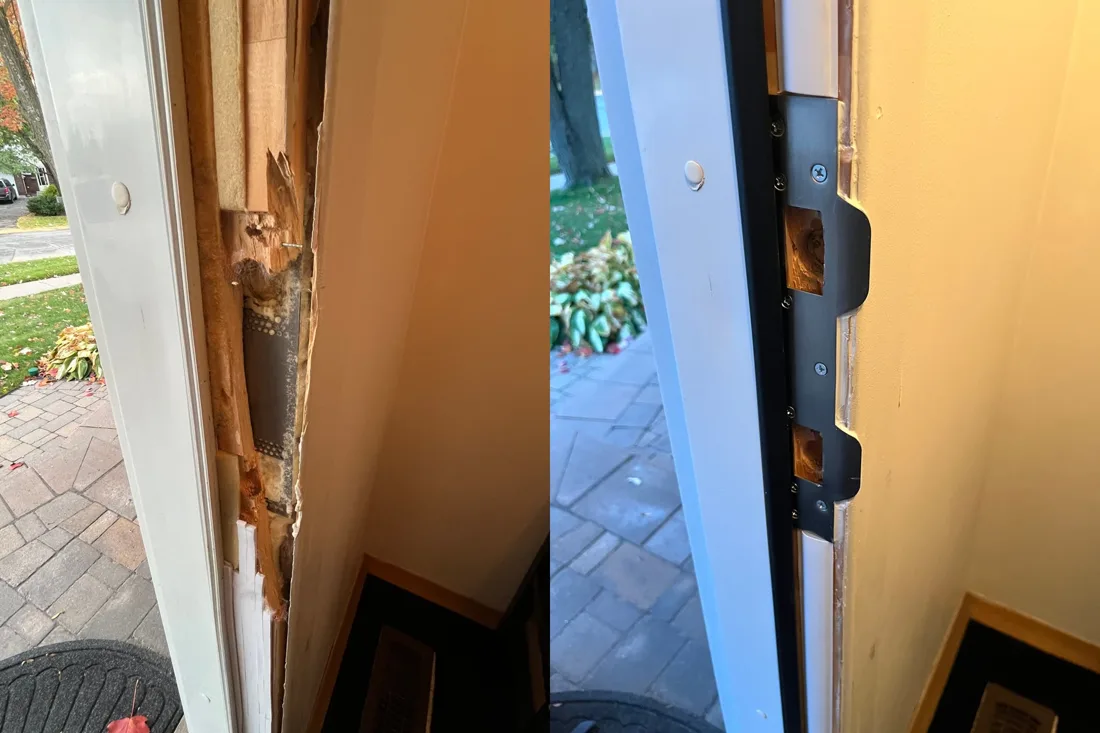

The Damaged Latch-Side Jamb
The force went into the jamb right where the deadbolt and latch sit. A long section of wood sheared away along the grain, leaving splinters standing out from the face and a nail pulled partway free. On the room side, the casing came away from the wall along the same line. Through the gap you can see the insulation and foam that normally sit hidden behind the jamb, along with a perforated metal plate in the rough opening. The weatherstripping at the bottom of the damaged section was torn loose.

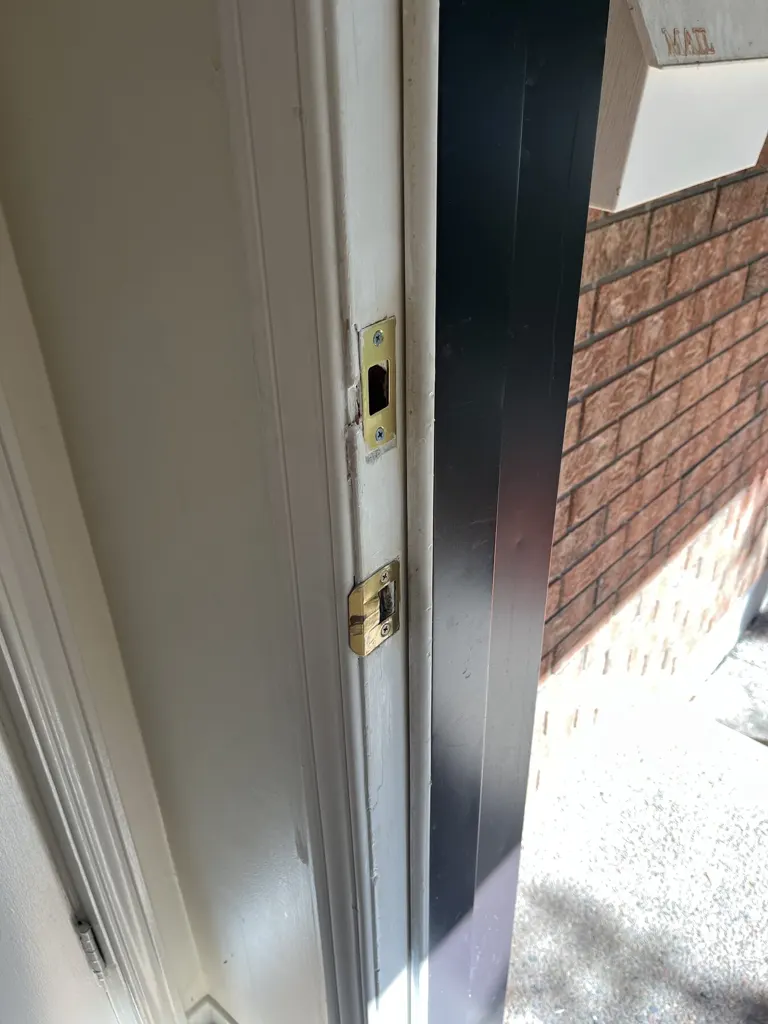

On many Ottawa entries the strike side is a thin board held by short screws that never reach the stud. When that strip of wood around the bolt pocket fails, you get a long split in the jamb while the lock itself may still turn — which is what happened here.
What Stayed and What Was Repaired
A full frame or pre-hung replacement makes sense when the opening is racked out of square, the slab is split through the lock bore, or the jamb is rotted as well as broken. On this job the damage was concentrated on the latch side, so the door stayed and the work focused on restoring the strike side of the jamb and installing door frame reinforcement.
Before hardware went back on, the latch side had to be brought back to solid, straight wood behind the strike area. A reinforcement plate is only as good as what its screws bite into.
Full-Length Steel Strike Plate Installation
The finished strike side uses a single steel plate in a dark finish that runs well above and below the lock. It has an opening for the deadbolt and one for the latch, each with a curved lip that guides the latch into the frame. The plate is fastened along its whole length, including a row of screws along the doorstop edge, so a blow at the lock is spread across a long stretch of jamb rather than two small strike pockets.
The plate openings have to line up with the bolt and latch so the deadbolt can throw fully. That alignment is part of finishing any strike reinforcement — a partly thrown bolt undoes most of the value of the plate.
The Finished Result
In the after photo, the broken section of jamb is gone from view and the strike side is covered by one continuous steel plate. The bolt and latch openings are cut through, the weatherstripping runs up to the plate from above and below, and the frame face is flat where it was split open in the before photo. Compared with the original strike setup, the latch side of this entry now has far more steel and fasteners holding the lock to the frame.
This page covers the jamb restoration and steel strike plate installation completed on this door. Other security upgrades, lock changes or board-up work are separate decisions when keys are missing or the opening cannot be secured overnight.
Found Break-In Damage at Your Door? Start Here
- Make sure the house is safe first. If there is any chance someone is still inside, leave and call 911.
- Photograph everything before it is touched. Wide shots and close-ups of the frame, lock and any marks on the door help with a police report and an insurance claim.
- Don’t force the door shut with screws into broken wood. It looks closed but won’t hold, and it can split the jamb further.
- Get the opening secured. If the door can’t be locked tonight, a temporary board-up or an emergency door repair visit covers you until the permanent repair.
- Think about the keys. If keys were taken or may have been copied, ask about lock repair and rekeying at the same time.
Break-in damage to door frames covers the full assessment when wood has split at the lock.
Break-In and Door Frame Repair in Blackburn Hamlet
Blackburn Hamlet sits inside the Greenbelt in Ottawa’s east end, a planned community of mostly detached homes and townhouses built from the 1970s on. Many still have their original wood entry frames or newer doors fitted into older openings, which means the strike side of the jamb is often a thin board held with factory-length screws. That is the setup a forced entry exploits.
We cover Blackburn Hamlet along with Beacon Hill, Orléans and Gloucester. Frame repairs, lock work and weatherstripping are the same kinds of door repair in Blackburn Hamlet we handle across that east-end pocket.
Need Break-In Door Repair in Blackburn Hamlet?
Send us a photo of the damage and we’ll tell you whether the frame can be restored or needs more.
Call or
request a free quote.
Break-In Door Repair Questions
Can a split door jamb be repaired, or does the whole frame need replacing?
Often it can be repaired. If the damage is limited to the latch side and the frame is still square and solidly fastened, the strike side can be restored and reinforced. If the frame has shifted, the door slab is split through the lock, or the jamb is rotted, replacing the frame or the full door unit is usually the better repair.
What does a full-length strike reinforcement plate do?
It replaces two small strikes with one long steel plate that covers the deadbolt and latch locations and is screwed in along its whole length. When the door is hit, the load is spread across a long section of the frame instead of a small pocket of wood around the bolt.
Do I need new locks after a break-in?
Not always. If the lock still works and no keys are missing, it can usually stay. If the cylinder was attacked, the bolt was bent, or keys were taken, have the lock repaired, rekeyed or replaced. Lock repair in Ottawa covers rekeying and cylinder work when keys may have been compromised.
Should I wait for my insurance adjuster before getting the door repaired?
Ask your insurer, but don’t leave the house unsecured while you wait. Take thorough photos first, keep any broken parts, and get the opening secured. Your insurer can tell you what they need from the repair invoice.
